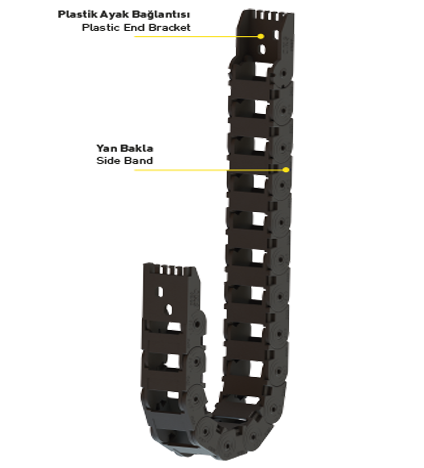

Plastic Light Series CK20 AC?K
Material Properties
PA6 with %30 fiber glass
Application Areas
Gantry robot, Machining center, Textile machine, Welding machine, Feeder unit, Wood work machine, Fabric machine
Speed
8 m/sec
Operating Temperature
-30 °C -+ 130°C
| L | Calculation of the chain length |
|---|---|
| HM | Movement Distance |
| Y | Radius Distance |
| X | Mounting Height |
| H | Pitch |
| Openable From Inner | A | B | C | D | W |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK20 A 025 R040 | 20 | 25 | 26 | 37 | 0,40 |
| Fixed Frame | A | B | C | D | W |
| MODEL | Inner Height (mm) | Inner Width (mm) | Outer Height (mm) | Outer Width (mm) | Weight Kg/Mt |
| CK15 F 015 R... | 15 | 15 | 20 | 25 | 0,27 |
| CK15 F 020 R... | 20 | 28 | 0,29 | ||
| CK15 F 030 R... | 30 | 38 | 0,32 | ||
| CK15 F 040 R... | 40 | 48 | 0,35 |
| RBending Radius | 25 |
| H (mm) | 25 |
| X (mm) | 70 |
| Y (mm) | 79 |
| R Bending Radius | 40 |
| H (mm) | 33 |
| X (mm) | 106 |
| Y (mm) | 126 |

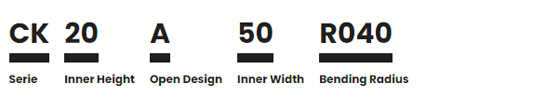

Order

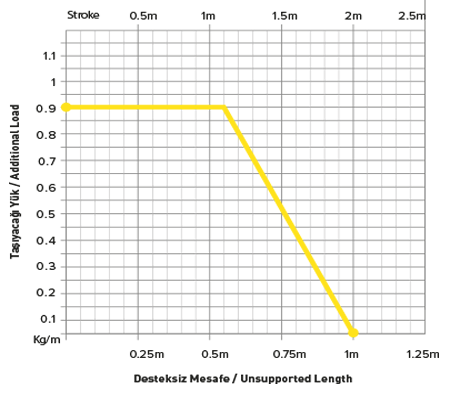

Load Diagram
Chain Cross Section

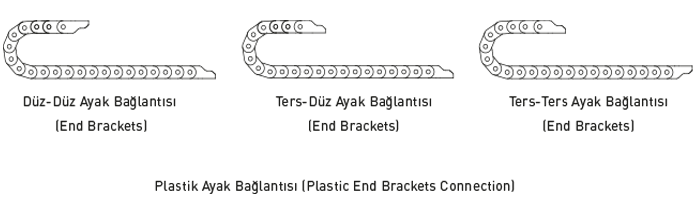

Driver Conections

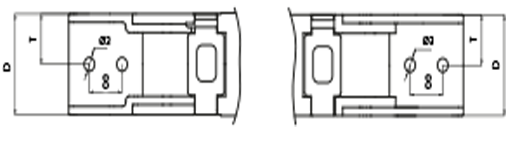

CK15 P 015 - CK15 P 020
CK15 P 030
| CODE | T | D |
| CK20 A 025 | 10 | 39 |

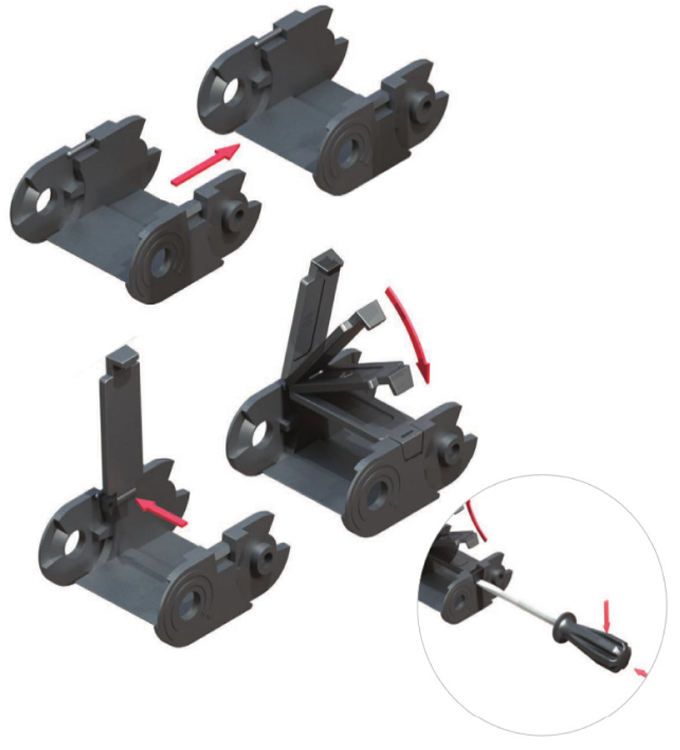

Assembly
